75 x 75mm (300mm-1500mm)
85 x 85mm (1500mm-1800mm)
The Tek stump is an innovative product designed to save time and effort for re-stumpers and builders alike. Made from higher cement content and a revolutionary core reinforcement design (including galvanised rio), the Tek stump has been able to reduce the size and weight of the stump and promote ease on difficult jobs. The Tek stump has also proven its adaptiveness to new housing sites, the lighter stump being less inclined to sink into freshly poured footings, resulting in less time packing and a much straighter job.

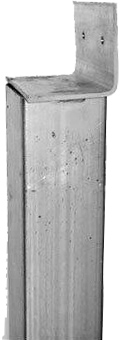

The hoop iron clip acts as a saddle that enables you to fix either side to the bearer using a tek screw, this process allows the stump to be effectively pulled up to the bearer, again limiting the need for packers. The Stump is reinforced with galvanised Rio to prevent rust, and later concrete cancer (When rust expands and causes the concrete to crack), whilst the end of the stump is coated in bitumen paint to prevent moisture from entering the concrete.

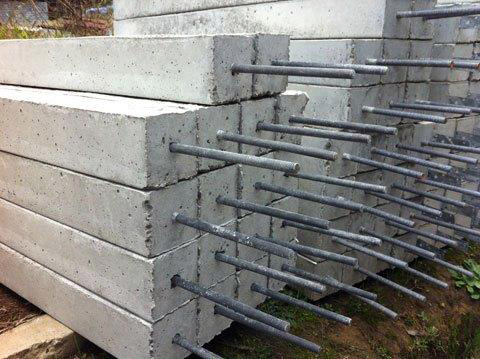

Threaded Concrete Stumps
400mm-3000mm tall, 2mm steel
3100mm-3900mm tall, 2.5mm steel
3900mm+ custom made steel stumps
Galvanised sprayed to prevent rust
L-Shaped top for easy hanging using Tek Screws
75mm and 85mm
Concrete Sole Plates
300mm diametre x 100mm deep
